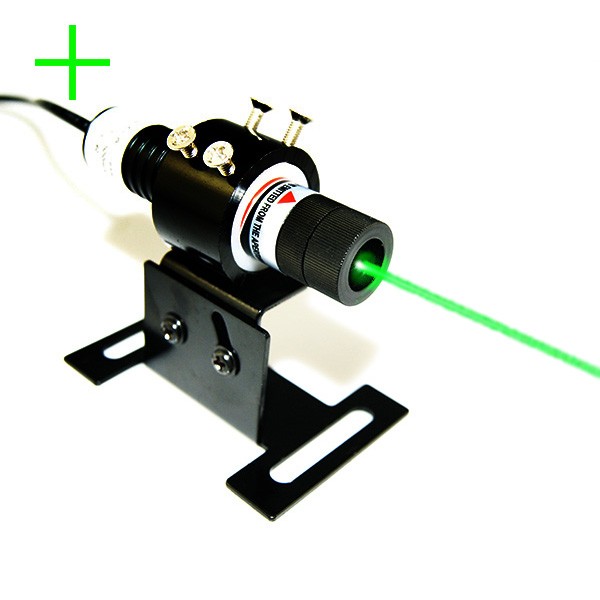

What makes a good job to make clear and precise cross line alignment in woodworking machinery? Either it is pointing at close or long distance not simply relying on any manual or mechanical cross line alignment work, it would be a good solution for engineers and factory workers to apply a high density light emitted tool of a 515nm green cross line laser module. 515nm wavelength is near the middle wavelength of 532nm among all visible optical spectrum, thus green laser light is highly visible in woodworking environments. The human eye is most sensitive to light, making it ideal for woodwork. When green cross laser alignment gets correct output power and optic lens fan angle, even in dusty, sawdust-filled, and complex lit woodworking workshops, green laser light still remains clear and bright in daylight, strong light, and on dark colored boards etc.
Basically 515nm green cross line laser module applies an import 515nm green laser diode within 50mW to 200mW, equipped with different type of thermal emitting, it enables superior nice heat dissipation, ultra long time lasted green light and green cross line projection in continuous use. For instance, when it selects lower power of 50mW to 100mW, a simple metal heat sink cooling system inside a metal housing tube is efficient enough to achieve good laser beam stability. In addition, a separate metal heat sink cooling system for higher power green cross laser alignment achieves longer time lasted cross line alignment, while still maintaining stable, clear and reliable two perpendicular green lines generation as long as 24 hours per day. Usually it gets no effect by moisture, dust, and other mechanical moving or calibration as well.
Cooperated with a qualified glass coated lens with 10, 15 and 110 degree fan angles and adjustable focus optic lens design in front of laser beam aperture, this 515nm green cross line laser module emits highly straight, fine and bright two perpendicular green lines within 0.5 meter to 6 meters lengths in distance. Together with its freely adjusted cross line thickness and low beam divergence, workers can align the material immediately upon loading, significantly reducing errors. Usually 515nm green cross laser alignment emits direct green light from an import 515nm green laser diode, without a pumped crystal, thus it is more suitable for harsh woodworking environments than 532nm green DPSS laser light.
Unaffected by vibration, dust and temperature changes, 515nm green cross line laser module can work continuously for 24 hours, has a long lifespan, and requires no maintenance. Whenever it makes correct use of output power and optic lens fan angle, without chalk lines, measurements or repeated calibration, only if it gets constant power source supply, it can quickly align the material, reducing reliance on experienced workers. Usually this alignment laser can be directly installed on saw tables, drill presses, and frames, providing a high precision and high stability rapid positioning reference in woodworking machinery, replacing ink lines and manual marking, making sawing, drilling, and edge banding more accurate, faster, and more material-efficient.
Applications in woodworking machinery fields:
Sliding table saw, panel saw and reciprocating saw. 515nm green cross line laser module replaces traditional ink lines and marking, eliminating the need for manual line marking, providing plating cutting positioning and alignment reference. It can prevent sawing sawing deviation, edge chipping, and increased waste.
Edge Banding Machine and Multi-Spindle Drilling Machine. It maintains consistency when processing multiple boards continuously, providing clear and bright green cross line source for plate feeding alignment and edge alignment, and drilling position crosshair center point positioning.
Woodworking Milling Machine, Router, Sanding Machine. It makes quick workpiece alignment and backrest positioning, applicable for solid wood cutting, panel splicing machine, and finger jointing machine.
High Beam Stability 515nm Green Line Laser Alignment for the Textile Industry
What is a good deal for engineers and factory workers to make extremely clear, fine and bright line indication for all textile processing works? It is not helpful at all to only rely on any prior line drawing or printing work, either it is pointing at close or long distance, it should be a preferred choice for them to operate a highly intense light emitted tool of a 515nm green line laser alignment. It applies to an import 515nm green laser diode and a qualified optic lens with different fan angles inside and durable metal housing tube with different dimensions. Cooperated with an external electric power source supply, after its proper installation or integration with textile processing device or equipment, laser line generator provides high precision line alignment light source for textile cutting, fabric laying and sewing works etc.
Basically 515nm green line laser alignment applies an AC/DC adapter as an external electric power source, which has just assured larger space leaving for tube heat dissipation and longer term lasted green light projection from the beam aperture. It gets different output power range of 50mW to 100mW and higher power range up to 150mW to 200mW, equipped with different dimensions made anodized aluminum alloy housing tube, this green laser module always gets good laser beam stability, highly reliable and clear green reference line projection as long as 24 hours. It is also a very easily operated accessory part of those of textile sewing and printing machine or devices. It gets featured advantages of high visibility, accurate line alignment, high durability, eye friendless, and easy installation etc. It also significantly improves production efficiency, reduces defect rates, and minimizes manual marking, making it a standard alignment solution for upgrading textile equipment.
Whatever kind of garment cloths it is processing, 515nm green line laser alignment is performing well with exceptionally clear visibility on fabrics. 515nm green light is more noticeable than red light on dark fabrics, patterned fabrics, denim, and non woven fabrics, and is not obscured by patterns. Either adopting glass coated lens or separate crystal lens, it projects high density and high beam quality Gaussian or non Gaussian distribution green laser light, and forms into a ultra fine, straight and uniform threads with high alignment precision. The straight and unbent threads ensure consistent alignment even with multiple layers, reducing detects. 515nm green laser line generator should only be selected with correct output power and optic lens fan angle, after its freely adjusted green line thickness and laser line emitting direction, it is suitable for high precision and high density operations in textile factories.
During the process of 24 hours continuous operation, 515nm green line laser alignment enables stable and clear line indication, without drifting or shifting, eliminating the need for frequent readjustments. In addition, being made with ultra small size tube design, it allows for direct installation next to the machine head or frame, simple plug in power for immediate use, resulting in low modification costs and quick results.
General applications in textile processing industries:
1. Fabric Laying Machines & Spreading Machines: Provides straight alignment laser lines, ensuring alignment of multiple layers of fabric without deviation or skewing.
2. Cutting Machines & Computerized Cutting Beds: Serves as a cutting baseline, replacing manual marking and improving cutting accuracy and efficiency.
3. Sewing Machines & Template Machines: 515nm green laser line generator is used for seam positioning, edge alignment, and fold alignment, improving sewing quality.
4. Fabric Inspection Machines & Rolling Machines: Assists in detecting fabric edge straightness, pattern alignment, and stripe/check alignment.
5. Home Textiles, Clothing, Curtains, Non-woven Fabric Processing: Provides rapid and accurate green laser line positioning during cutting, alignment, trimming, and splicing.
General Applications of 445nm Blue Crosshair Laser Module In Scientific Experiments
In a large variety of scientific experiment works, not simply relying on any prior cross line drawing or printing work, it would be always making an efficient job to apply a high energy density beam emitted tool of a 445nm blue crosshair laser module. It applies an import 445nm blue laser diode and a qualified optic lens with different fan angles inside a highly durable metal housing tube. It is mainly used in scientific experiments for optical alignment, spatial positioning, instrument calibration, and calibration of biological/materials/physics experiments. Based on the special use of thermal emitting system design and constant power source supply, after its proper installation or integration with experimental machine or device, this blue cross laser alignment enables stable wavelength, high precision, intuitive and easy to use, and easy integration, providing an efficient reference light source for precision measurement and optical experiments in the laboratory.
Usually 445nm blue crosshair laser module applies an AC/DC adapter as its electric power source, not spending extra time on battery change, it can make constant blue light emission from an inner laser diode directly. 445nm blue light belongs to the narrow bandgap of visible light, facilitating filtering, detection, and control, making it suitable for precision optical experiments. Being made with an import 445nm blue laser diode within 50mW to 500mW, cooperated with a metal heat sink cooling system and APC, ACC driving circuit board inside a different dimension metal housing tube, this direct diode emission made blue cross laser alignment always achieves good heat dissipation, high laser beam stability, long period blue vertical and horizontal lines generation as long as 10 hours per day.
Owing to the adoption of a qualified glass coated lens with 10, 15 and 110 degree fan angles, cooperated with adjustable focus optic lens in front of laser beam aperture, this 445nm blue crosshair laser module gets immediately focused blue laser light emission, and converts into an increasing accuracy and brightness blue vertical and horizontal lines at a long operating distance and high lighting environments as well. It provides both X and Y bidirectional references, enabling two-dimensional positioning in a single alignment, simplifying experimental setups. After its correct use of output power and optic lens fan angle, and proper integration with optical supports, displacement stages, microscopes, and experimental chambers, this blue alignment laser meets the high precision and repeatability requirements of scientific research, minimizing experimental errors. Blue light is clear and non-glaring in darkroom/laboratory environments, facilitating manual alignment and observation.
Applications in scientific experiment fields:
Optical Experiment Reference and Alignment: 445nm blue cross line laser module is used as a spatial positioning reference for coaxial, collinear, and coplanar calibration of optical platforms, optical path systems, lenses/mirrors/gratings.
Physical Experiment Positioning and Measurement: Position marking in interference, diffraction, and imaging experiments; auxiliary marking lines for displacement, angle, and deformation measurements.
Biomedical Experiment Positioning: Blue cross laser alignment is positioning the center of view in microscopes and imaging systems; precise alignment of cell manipulation, microfluidic chips, and biological samples; spot positioning in photodynamic and photostimulation experiments; irradiation area calibration in photocatalysis, photodegradation, and photopolymerization reactions in materials and chemistry experiments; surface modification of materials; and spot position fixation.
Precision Instrument and Sensor Calibration: Correction of the coordinate origin and crosshair reference for two-dimensional measuring instruments, projectors, visual inspection systems, and displacement sensors.
Micro-nano fabrication and experimental stages assist in rapid centering and alignment of photolithography, microfabrication, and probe stages, improving experimental repeatability and efficiency.
How Can 515nm Green Laser Line Generator Used for Industrial Field?
When line indication work is processing for various industrial machinery processing works, on consideration of its high level of accuracy and high brightness line projection, it should be a quite nice solution to operate a high brightness device, such as a 515nm green laser line generator. It gets featured advantages of high fineness and highly straight green reference line projection form its qualified optic lens. In practical line indication work for both of long time and long distance use, once this ultra compact structure made green laser module makes proper installation and adjustment to correct position, it is able to make ultra clear, quick response and high precision green line indication onto multiple working surfaces conveniently:
Line positioning and calibration
Mechanical processing: In lathes, milling machines and other mechanical processing equipment, 515nm green laser line generator provides accurate green line positioning reference for the clamping of tools or workpieces so as to ensure accurate processing positions. It can also be used for station calibration of multi-station processing equipment to ensure the position accuracy between stations.
Electronic manufacturing: In the process of circuit board production, highly straight line is used for cutting and drilling positioning of PCB boards to ensure the accurate installation position of electronic components. In the chip packaging link, it provides accurate positioning reference for the alignment of chips and packaging shells to improve packaging quality.
Cutting and welding
Metal cutting: 515nm green laser module provides cutting path line instructions for metal cutting equipment. Operators can accurately control the cutting direction and position according to the laser line, improve cutting accuracy and quality, and reduce material waste.
Welding assistance: In the welding process, green reference line is used for positioning and tracking the weld, so that the welding head can move accurately along the weld to ensure the stability of welding quality, especially suitable for welding of high-reflective metals such as copper.
Measurement and detection
Dimension measurement: In industrial production, 515nm green laser line generator is used to measure the length, width, thickness and other dimensions of objects. By projecting a green laser line onto the surface of an object, using a camera or sensor to capture the image of the laser line, and then calculating the size information of the object through an image processing algorithm.
Surface detection: Detecting defects such as flatness, scratches, and cracks on the surface of metal sheets, pipes, etc. When green laser line is projected onto a defective surface, the laser line will be distorted and deformed. The location and degree of the surface defect can be determined by analyzing the changes in the laser line.
Automated production line
Material transmission and sorting: In an automated production line, 515nm green laser line generator is used to indicate the transmission path and sorting position of the material. When the material passes through the green laser line, the sensor can determine the position and state of the material based on the occlusion of the laser line, and realize automatic transmission and sorting of the material.
Robot guidance: Provide guidance for the motion trajectory of industrial robots. The robot can perform path planning and motion control based on the position and direction of green laser line to achieve precise grasping, assembly and other operations.
Performance Advantages of 445nm Blue Dot Laser Module
When advanced 445nm blue laser diode tech is applied for practical dot measuring tool, configured with cooling system and a qualified optic lens inside its metal housing tube, laser engineers and professionals are manufacturing a quite professional device of a 445nm blue dot laser module. It can emit high brightness blue laser light to form a clear and sharp dot shaped light spot. In practical precise dot measuring work, after its correct use of output power and proper connects with external electric power source, this direct diode emission made dot laser alignment tool can maintain good visibility even in brighter environments and provide precise dot indication and positioning.
After quite easy connects with AC/DC adapter, 445nm blue dot laser module projects ultra intense and powerful blue laser beam from an inner laser diode. It has excellent monochromaticity, relatively single wavelength, and pure light, which can ensure accuracy and stability in optical applications, reduce color deviation and interference, and has obvious advantages in scenes requiring precise color control. Owing to its special design of metal heat sink cooling system inside its durable anodized aluminum alloy housing tube, the genuine dot alignment work with a 445nm blue dot laser has good absorption rate of blue laser light for high reflectivity materials such as copper and gold. It gets even better laser light absorption ability than other wavelengths such as infrared laser light.
When laser light detection work is processing onto different raw material surfaces, 445nm blue dot laser module gets strong single feedback, thus improves detection accuracy greatly. Being made with a qualified glass coated lens and glass window in front of beam aperture, it keeps work with high penetration and high energy density blue laser light source emission. In fields such as biological imaging and spectral analysis, the high resolution and deep penetration ability of the blue dot laser module can achieve detailed observation and analysis of the microscopic world.
The special design of adjustable focus optic lens can concentrate energy in a smaller area to form a higher energy density. This 445nm blue dot laser module is suitable for applications that require high energy concentration, such as fine processing, material processing, beauty and other fields. It uses high-quality semiconductor laser diodes and other core components, and is equipped with advanced APC, ACC driving circuit board and heat dissipation design. It can maintain a stable working state under different environmental conditions and working hours, and provide continuous and stable blue light output.
Being made with ultra compact and durable metal housing tube with special adjustable focus optic lens design, this 445nm blue dot laser module is suitable for micro-detection in the microelectronics and semiconductor industries, as well as surface defect detection and dimensional measurement in the manufacturing industry. It can also be used in industrial processing, communications and optical fiber transmission, laser display, scientific research and other fields. When it projects powerful blue laser radiation and thermal energy, it is a necessity to take active laser safety measure and avoid eye exposure to beam aperture so as to achieve easy and secured dot measurement and detection results effectively.
General Introduction of 405nm Violet Line Laser Alignment
The genuine use of a 405nm violet line laser alignment is not the same as any other visible laser devices, since the purple wavelength of 405nm is at the edge of visible laser light, which has ultra high energy, and can more efficiently excite fluorescent substances. besides its forma operation for those of industrial precise line measurement and alignment works, it is suitable for applications that require fluorescence excitation, such as bioluminescence detection, fluorescent anti-counterfeiting etc.
Structure: 405nm violet laser diode is the core component for generating 405nm violet laser. This violet line laser alignment is usually composed of multiple optic lenses, such as glass coated lens or separate crystal lens based on real line measuring accuracy in real use. For instance, the optic lens’ function is to shape and collimate the violet light beam emitted by the laser diode, convert the divergent violet laser beam into a straight violet line beam with a certain width and angle. On the basis of desired line length, line fineness and work distance, after correct selection of output power, optic lens type and fan angle, this 405nm violet laser module is able to realize high precision and high speed line measurement for multiple raw materials processing works.
In practical precise line measuring works, 405nm violet line laser alignment is able to form a clear and bright straight violet line on the targeting surface, and maintain a high contrast even in strong ambient light, which is easy to observe and identify. Based on the inner cooling system and APC, ACC driving circuit board inside a high duration housing tube, after its operation with superior nice thermal emitting and thermal conductivity, 405nm violet laser module is maintaining high stability of the power and wavelength of the laser output during long term work, ensuring the shape and position accuracy of the straight line.
Cooperated with adjustable focus optic lens design, 405nm violet line laser alignment can easily realize precise optical design and processing. The violet line width can be controlled within a very narrow range, which is suitable for measurement and positioning applications with high precision requirements. featured by small divergence angle of the beam, the energy distribution is uniform, and it can maintain a good beam shape within a certain distance, thus ensuring the clarity and stability of the straight line at different working distances.
Applications:
Industrial field: violet laser line is used as a light source for contour detection to help detect the edges and contours of objects in industrial visual inspection. It provides accurate line positioning benchmarks for automated equipment positioning, which can also be used for laser contour measurement, and cooperate with measuring instruments to obtain three-dimensional contour data of objects for quality control and product design.
Medical field: In fluorescence microscope operation, the 405nm wavelength violet laser module can be used to excite fluorescently labeled biological samples to observe the distribution and structure of biological molecules such as cells and proteins; in cell analysis and separation, it can excite fluorescent substances in cells, analyze the characteristics of cells by detecting fluorescent signals, and realize cell sorting and enrichment.
Research field: In atomic and molecular spectroscopy research, 405nm violet line laser can be used as an excitation light source to study the energy level structure and spectral characteristics of atoms and molecules; in laser speckle research, it can produce stable laser speckles to measure physical quantities such as surface displacement and vibration of objects.
Structure of 830nm Infrared Laser Diode Module
Usually 830nm infrared laser diode module applies a qualified optic lens and import 830nm infrared laser diode inside a high duration housing tube. It is in need to make long time lasting and high energy density infrared laser beam emission at several miles far away. It makes long time lasting dot indication for night version illumination and dark working environments etc. Whenever this ultra compact size tube made 830nm infrared dot laser makes proper installation and integration with other night version device, it is able to make ultra precise, good direction and highly precise infrared dot indication and measurement for multiple working environments.
In front part of beam aperture, this 830nm infrared laser diode module applies a qualified glass coated lens. It adopts high quality optical materials with good optical properties, such as high transmittance and low dispersion etc. In addition, when it gets special use of adjustable focus optic lens in front of beam aperture, after its operation with low laser beam divergence angle and high concentration infrared laser light source generation at long extending distance, this infrared dot laser is able to make efficient conversion of increasing accuracy and brightness infrared reference dot projection onto various working surfaces.
In practical precise dot measurement, 830nm infrared laser diode module applies highly durable anodized aluminum alloy housing tube, which has featured advantages of high strength, light weight and good heat dissipation. Within wide range operating temperature and other harsh working environments, it gets superior nice thermal conductivity, and ultra stable infrared reference dot projection in long time use. Owing to its carefully designed and processed, which has got good sealing and impact resistance, allows quite easy installation and integration with other night version devices.
Integrated with APC, ACC driving circuit board, within wide range output power of 5mW to 100mW, 830nm infrared laser diode module keeps work with constant output power and electric current supply, and maintains ultra stable infrared reference dot projection in long time use. It gets no effect by overheating and current limitation protection, thus it gets reduced tube burning out or damage, and long serving lifetime in proper use.
Applications:
Night version and monitoring: in the field of security monitoring, 830nm infrared laser diode module can be used as night version supplementary light source, providing clear monitoring images at night or in low light environments. Human eyes can capture any IR laser light at this wavelength, which can achieve concealed monitoring result.
Communication field: 830nm infrared laser can be used for short-distance high-speed laser communication systems, such as indoor wireless optical communication, close-range point-to-point communication, etc., with the advantages of high bandwidth and strong anti-interference.
Medical cosmetology: 830nm near-infrared laser light is used in medical cosmetology, it makes perfect control of inflammation and has a more obvious effect of promoting healing and repair. It can be used for postoperative wound healing and reducing edema.
Industrial detection: In industrial production, it can be used for object position detection, size measurement, defect detection, etc. With photoelectric sensors, it can accurately measure the displacement, vibration and other parameters of the object, and monitor the quality and operation status of the products on the production line.
Laser simulation training: In military training and simulated confrontation systems, 830nm infrared laser diode module can simulate the laser beam emitted by weapons, which is used to train soldiers’ aiming, shooting skills and tactical coordination.
Structure of 830nm Infrared Laser Diode Module
Being made with advanced 830nm infrared laser diode tech and a qualified optic lens inside a highly durable housing tube, it is manufacturing into a quite professional night version observation device, such as a 830nm infrared laser diode module. It emits invisible infrared laser beam from an import IR laser diode within 5mW to 100mW, which enables high transmittance and low dispersion infrared laser light source generation at long extending distances. On the basis of special use of adjustable focus optic lens design and constant electric power source supply, it assures long time lasting, high precision and ultra clear infrared reference dot indication and measurement for those of raw material processing works effectively.
The genuine use of a 830nm infrared laser diode module applies adjustable focus optic lens design. Cooperating with a qualified glass coated lens in front of beam aperture, any time it is working well with high penetration and low divergence angle infrared laser beam, it is able to convert into a ultra compact size and precise infrared reference dot projection in use. Together with special use of adjustable focus lens design, only after quite easy screw of beam aperture part, this infrared dot laser achieves the most concentration infrared laser light generation,and high efficiency conversion of increasing accuracy and brightness infrared reference dot indication at long extending distances. When it gets precise beam focusing and shaping, infrared reference dot quality is better and energy distribution is more uniform.
This 830nm infrared laser diode module adopts the most durable anodized aluminum alloy housing tube material, which has the featured advantages of high strength, light weight and good heat dissipation. Cooperating with a metal heat sink cooling system inside, when nit gets good thermal emitting and thermal conductivity, once it makes continuous infrared laser dot projection within constant work time of 10 hours per day, it still maintains ultra high laser light cycling use, and ultra stable infrared dot projection for multiple working environments. The shell of infrared dot laser is carefully designed and processed, usually has good sealing and impact resistance, and can adopt to various harsh working environments as well.
Integrated with APC, ACC driving circuit board, 830nm infrared laser diode module enables constant output power and electric current supply in continuous use. It gets perfect control of tube temperature and reduced possibility of tube burning out or damage, and obtains long serving lifetime of more than 8,000 hours in proper use. The driving circuit can provide stable current drive to ensure the normal operation of the 830nm infrared laser diode, and also has overheating and current limiting protection functions to prevent the laser module from being damaged due to overload or overheating.
Applications:
Night vision and monitoring: In the field of security monitoring, 830nm infrared laser diode modules can be used as night vision supplementary infrared laser light sources, which can provide clear monitoring images at night or in low-light environments. The infrared light of 830nm wavelength is not easily detected by the human eye, which can achieve concealed monitoring.
Communication field: 830nm infrared laser can be used for short-distance high-speed laser communication systems, such as indoor wireless optical communication, close-range point-to-point communication, etc., with the advantages of high bandwidth and strong anti-interference.
Medical cosmetology: 830nm near-infrared laser light is used in medical cosmetology, which makes perfect control inflammation and has a more obvious effect of promoting healing and repair. It can be used for postoperative wound healing and reducing edema.
Industrial detection: In industrial production, it can be used for object position detection, size measurement, defect detection, etc. With photoelectric sensors, it can accurately measure the displacement, vibration and other parameters of the object, and monitor the quality and operation status of the products on the production line.
Laser simulation training: In military training and simulated confrontation systems, 830nm infrared laser diode module can simulate the laser beam emitted by weapons, which is used to train soldiers’ aiming, shooting skills and tactical coordination.
Featured Use of 808nm Infrared Laser Diode Module
The general use of a 808nm infrared laser diode module integrates an import 808nm infrared laser, electric driving circuit board, and optical component inside a durable and small size housing tube. Featured by ultra compact and durable anodized aluminum alloy housing tube design after its easy connects with electric power source, this accessory part of a IR dot laser enables quite easy installation, easy integration with various devices, and quick response infrared dot alignment for all night version dot measuring fields conveniently.
In process of long time lasting infrared dot projection work, 808nm infrared laser diode module gets good heat dissipation design. It should be working for a quite long time and maintaining ultra stable IR dot generation in long time use. It applies an import 808nm infrared laser diode within different output power range of 5mW to 400mW, and 500mW to 1000mW. Inside its durable anodized aluminum alloy housing tube design, designed with a metal heat sink cooling system, this infrared dot laser gets good thermal conductivity. It ensures that laser diode gets effectively dissipate heat during operation, while still maintains stable operating temperature, good performance and long lifetime of the module.
Besides the use of the use of a qualified glass coated lens, this 808nm infrared laser diode module still gets special use of a glass window in front of beam aperture. It gets quite low beam divergence angle, thus it always enables highly concentrated infrared laser light source emission, and high efficiency conversion of ultra clear and precise infrared dot generation at long extending distance. In practical precise dot measuring work, it maintains qualified output infrared light spot with good directionality and IR dot quality. After its proper infrared laser dot size and shape adjustment, this infrared dot laser always gets the most concentrated infrared laser light source generation, increasing accuracy and brightness infrared dot alignment at long extending distance.
Performance Advantages:
808nm infrared laser diode module enables high electro-optical conversion efficiency, which can efficiently convert the input electrical energy into 808nm IR laser energy. Within long lasting infrared dot alignment within 10 hours per day, it keeps work with reduced energy consumption, higher output power at the same output input with other visible lasers.
It enables good infrared laser beam quality and small beam divergence angle, thus high concentration IR laser light and uniform energy distribution convert into ultra precise and compact size infrared dot alignment for long distance transmittance and precise dot positioning. It gets great use for IR dot measurement, positioning, night version monitoring etc.
Applications:
Laser medical field: 808nm infrared laser light source is used for laser hair removal, infrared laser therapy, such as handheld infrared therapy device, which penetrates deeper tissues, reduces inflammation, relieves pain, and promotes blood circulation.
Industrial manufacturing: high efficient and high power infrared laser beam can improve productivity efficiency and processing quality in material processing work of laser welding, marking and other processes, and detect hidden cracks and PL in the photovoltaic industry.
Security monitoring: 808nm infrared laser module is used as the laser light source of laser night version devices, which provides clear images and videos in low light or dark environments, enhances monitoring effects, and is suitable for safe cities, intelligent transportation, border defense, and coastal defense.
Measurement and positioning system: laser rangefinders and laser radars with good directivity and precise light spot measurement for various measurement and positioning tasks.
Scientific research: it provides high purity infrared laser light source in spectroscopy research, precision experimental measurements and theoretical verification in fields such as quantum physics and optical communications.
Structural Features of 795nm Infrared Laser Diode Module
Employed by advanced semiconductor 795nm infrared laser diode and a qualified optic lens inside a durable housing tube, it is created into a quite professional night version device of an infrared laser diode module. This 795nm wavelength is located into the near infrared spectrum region, has good penetration and scattering features. On the basis of correct use of operating voltage electric power source, and proper installation to night version machine or device, it enables quick response, good directivity and highly precise infrared reference dot projection for all high precision measuring fields.
Featured performance:
After quite easy connects with an AC/DC adapter, not spending extra time on alkaline battery change, this 795nm infrared laser diode module is making constant infrared laser beam emission in distance. This 795nm near infrared wavelength enables low laser beam divergence, and highly concentrated infrared laser light emission. In process of continuous infrared dot indication, it gets low energy loss and improved measurement accuracy. Integrated with a metal heat sink cooling system inside a high duration metal housing tube, it still maintains good thermal emitting and thermal conductivity, and ultra stable infrared reference dot indication, good IR laser light penetration and scattering performance.
In order to get high stability IR dot generation in long time use, 795nm infrared laser diode module employs APC, ACC driving circuit board inside its durable anodized aluminum alloy housing tube. For instance, it gets low power fluctuations less than ±3% within 2 hours. When it gets stable polarization characteristics, and high polarization extinction ratio, it enables high lase beam stability and high consistency of the beam during transmission. Within long time lasting infrared laser dot indication of 10 hours, 795nm infrared dot laser still keeps good thermal energy saving, low thermal consumption and long lifetime operation.
Applications:
Spectral sensing: 795nm infrared laser is used for high precision spectral measurement in fields such as monitoring, food safety testing, biomedical research, and atomic clocks etc.
Medical field: long wavelength 795nm IR laser is used as an accessory part, which is applied for skin treatment and diagnostic equipment for phototherapy and skin disease detection.
IR dot positioning and motion control: invisible 795nm infrared laser provides accurate infrared laser beam pointing and measurement for positioning sensors and motion control system, thus it assures accurate movement and positioning of equipment.
In camera detectors, the presence of the camera is confirmed by the infrared reference dot reflective points scanned by infrared laser light. It can also be used in infrared space communication modules so as to achieve secure communication within a limited space.
